High Precision Sealed Fiber Laser printing Machine With dust recycle system
Machine system description
Quantum- FL30M Fiber Laser printing machine equip with a sealed work room, the room has add a dust recycle system, transporting the smell and dust outside door.
it is special designed for clean workroom marking. There is no dust and smell last in the working room.
SS Iron Aluminum printing is speedy and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running.
It can support file formats like PLT, DXP, BMP and so on.
24-hour non-stop running makes it meet the demand of massive industrialized production.
Data sheet
| Product Specifications |
| Product | Quantum-FL20M |
| Laser | |
| Laser Wavelength | 1000-1100nm |
| Laser Type | Fiber Laser |
| Laser Output Power | 20W |
| typical Laser Life Span | 100,000hrs |
| Modulation frequency | 20-100kHz |
| Max. Working Speed | 7000mm/s |
| Lens | F-Theta Lens |
| Working | |
| Working Area | 70x70mm , 110x110mm, 160x160mm, 175x175mm (standard) ,220x220mm |
| Precision | 0.01mm |
| Control | |
| Power supply | AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller | Computer with marking software |
| File Types | PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time | 24hrs (recommend 1hr cool-down period) |
| Physical Characteristics | |
| Weight (kg) | 120kg |
| Guarantee: | (see Ts&Cs on support page) |
| General Guarantee | 24 Months from date of arrival at destination |
Application
It can mark almost all kinds of materials. Metal and nonmetal.
Electronic parts,IC,tools,communication products.
The application can be every industry. Like machinery, education, air space etc.

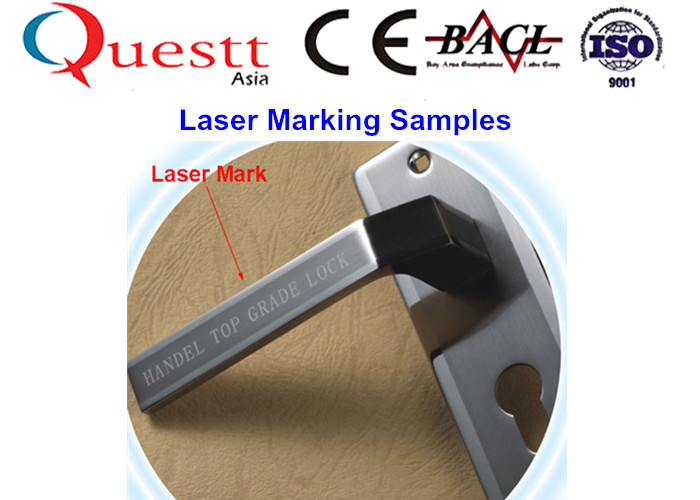

Sample
Features
Compared with normal machine, this one has a dust recycle system, transporting the smell and dust outside door. So your room will have no bad smell and dust .
1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system
8 Dust and smell recycle system
1 Q: What is the warranty of the machine?
A: The warranty is 2 year
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the service ?
A: Offer oversea service .
4 Q: How about the quality?
A: Germany high technoloy .
5 Q: Can we customize as special needs?
A: Yes.
Machine details
